一、簡介


氯酸鈉發生器為成套設備，鹽的溶解調配、電解、儲存、調控發生在一個設備內進行，投資少、占地省、設置靈活。
Sodium Hypochlorite chlorate generator as complete sets of equipment , deployment of dissolved salts , storage, electrolyte, the dissolution of salt regulation within a device,less investment , covers an area of less and configuration flexibility .
電解極板安裝在特制迷宮反應室內，進行隔膜式自然循環，因此鹽利用率高，電解過程電流效率高，次氯酸鈉產率大，能耗小，運行費用低，產品溶液穩定。 electrolysis plates installed in a special labyrinth reaction chamber, and subjected diaphragm natural circulation , so the utilization of high salt , high current efficiency of the electrolysis process , sodium hypochlorite large yield , low energy consumption , low operating costs, stable product solution .
進水進行預處理軟化，延長電極清洗周期。
The water inlet pretreatment soften extends the electrode cleaning cycle .

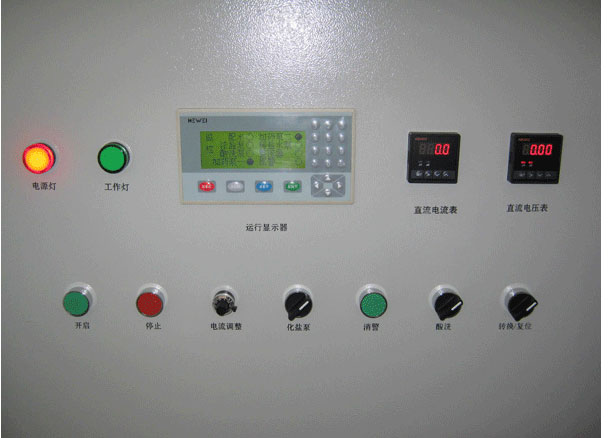

采用PLC自動控制技術，TP人機交互界面，具有遠程GPS預警診斷功能。
PLC automatic control technology , TP interactive interface , with remote GPS warning diagnostics.
設備配置豐富，滿足各種不同用量及場合。
Rich device configuration , to meet a variety of different dosage and occasions .

二、設備機理Equipment Principle

     3%-5%濃度稀鹽水溶液在外加直流電下發生的一些列電化學反應，最終生成含量為7-8g/L的NaCLO溶液，化學方程式如下：

3% saturated brine is electrolyzed with direct current,after series electrochemical reaction, form the sodium hypochilorite solution finally, the chemical equationis as follow:
     NaCl+H2O+2F→NaClO+H2↑

三、規格型號Models
